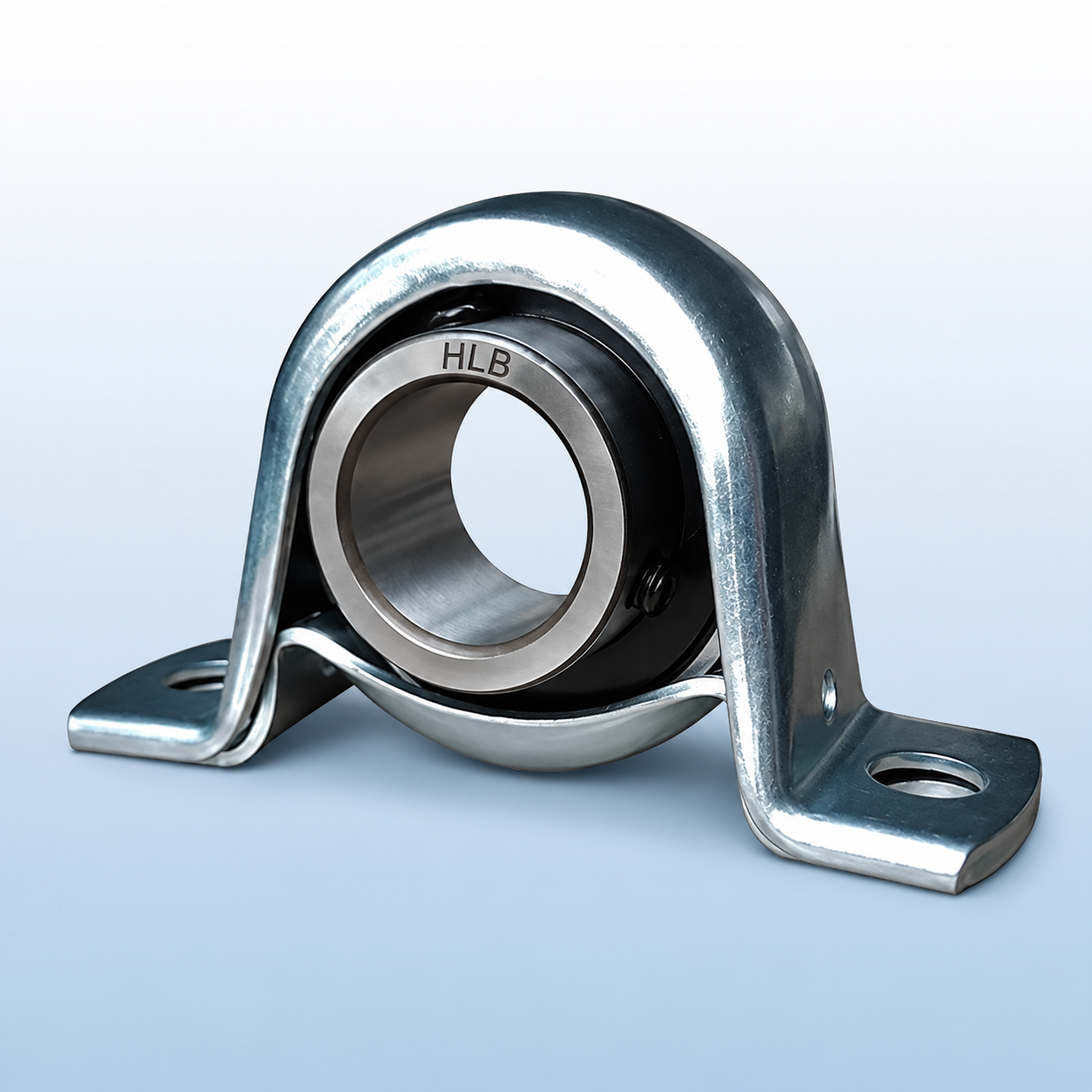

SBPP206-18 HLB Stamped Steel Unit
HLB SBPP Stamped Steel Pillow Block Unit – Setscrew Locking. Shaft diameter: 30 mm (1-1/8 in). Housing dimensions from the supplied catalog: H 33.3 mm, J 95.0 mm.
Description
HLB SBPP Stamped Steel Pillow Block Unit – Setscrew Locking. Shaft diameter: 30 mm (1-1/8 in). Housing dimensions from the supplied catalog: H 33.3 mm, J 95.0 mm.
Additional information
| Weight | 0.56 kg |
|---|---|
| Bearing Type | SBPP Stamped Steel Pillow Block Unit – Setscrew Locking |
| Shaft Diameter | 30 mm (1-1/8 in) |
| Housing L | 117 mm |
| Housing J | 95 mm |
| Housing H | 33.3 mm |
| Housing H1 | 4 mm |
| Housing H0 | 66.3 mm |
| N | 11.5 mm |
| A | 38 mm |
| d1 | 44.5 mm |
| B1 | 35.7 mm |
| B | |
| S | 8 mm |
| Bolt Size | M10 / 3/8 in |
| Weight | 0.56 kg |
