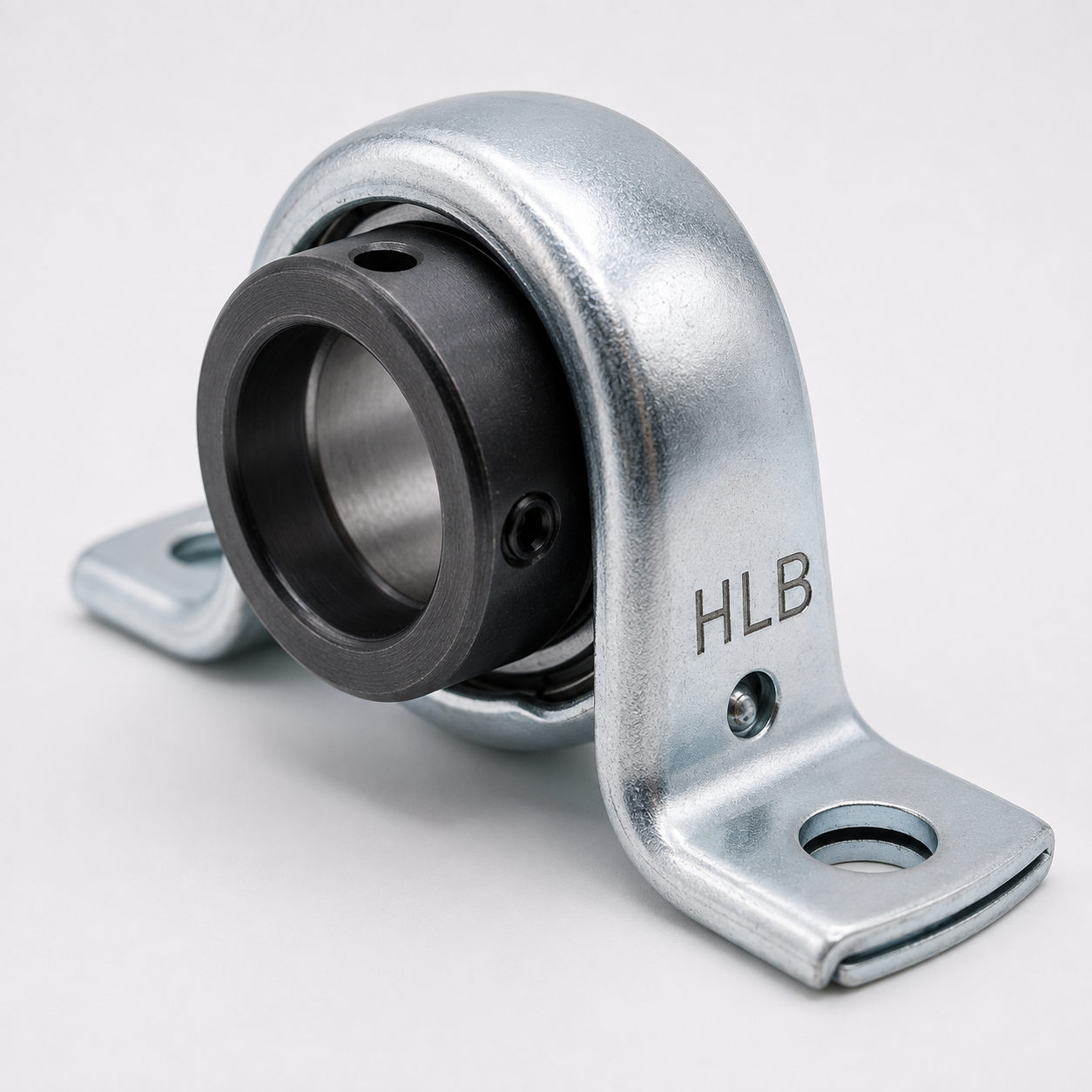

SAPP205 HLB Stamped Steel Unit
HLB SAPP Stamped Steel Pillow Block Unit – Eccentric Locking. Shaft diameter: 25 mm. Housing dimensions from the supplied catalog: H 28.6 mm, J 86.0 mm.
Description
HLB SAPP Stamped Steel Pillow Block Unit – Eccentric Locking. Shaft diameter: 25 mm. Housing dimensions from the supplied catalog: H 28.6 mm, J 86.0 mm.
Additional information
| Weight | 0.38 kg |
|---|---|
| Bearing Type | SAPP Stamped Steel Pillow Block Unit – Eccentric Locking |
| Shaft Diameter | 25 mm |
| Housing L | 108 mm |
| Housing J | 86 mm |
| Housing H | 28.6 mm |
| Housing H1 | 4 mm |
| Housing H0 | 56.5 mm |
| N | 11.5 mm |
| A | 32 mm |
| d1 | 38.1 mm |
| B1 | 31.5 mm |
| B | |
| S | 7.5 mm |
| Bolt Size | M10 / 5/16 in |
| Weight | 0.38 kg |
