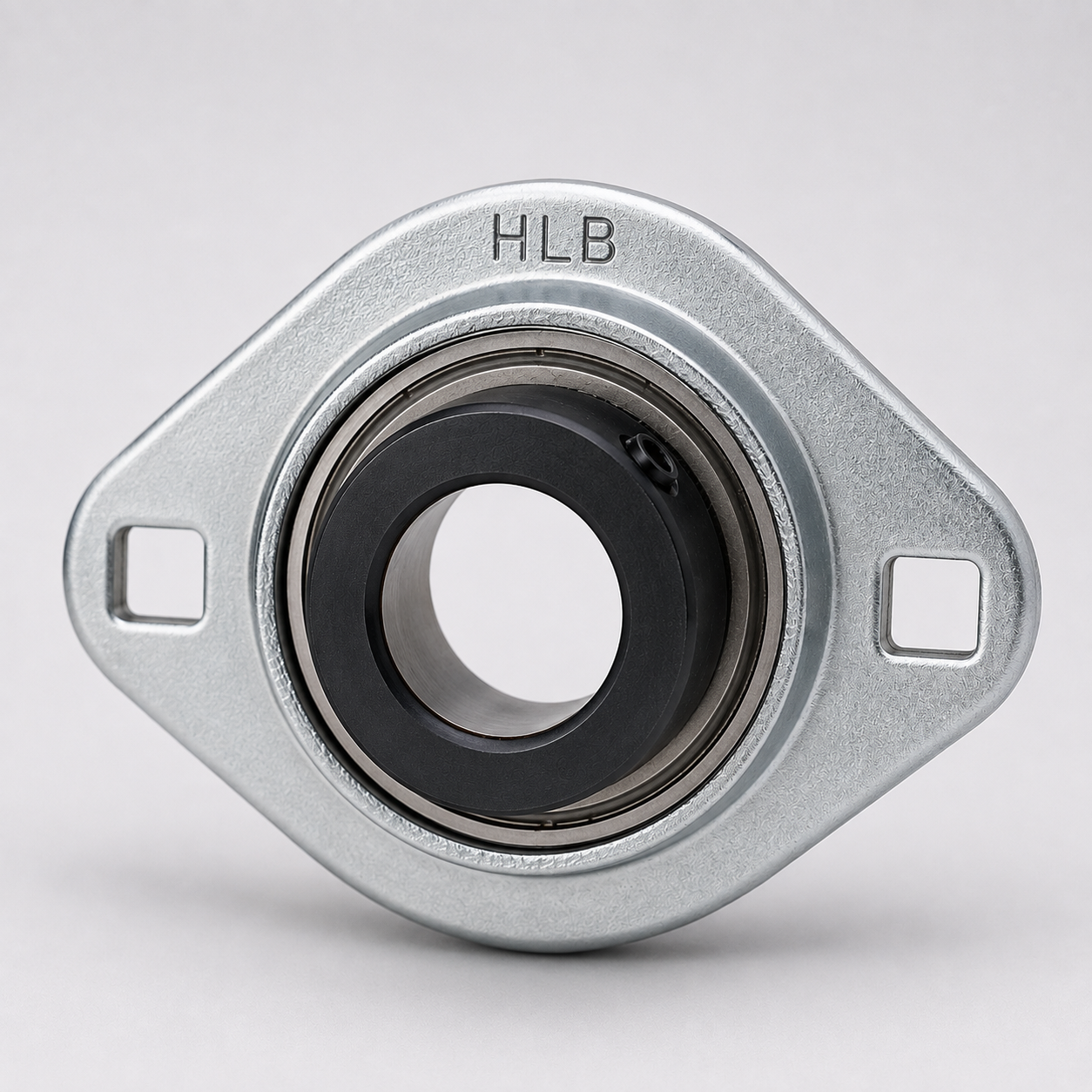

SAPFL203 HLB Stamped Steel Unit
HLB SAPFL Stamped Steel 2-Bolt Flange Unit – Eccentric Locking. Shaft diameter: 17 mm. Housing dimensions from the supplied catalog: H 81.0 mm, J 63.5 mm.
Description
HLB SAPFL Stamped Steel 2-Bolt Flange Unit – Eccentric Locking. Shaft diameter: 17 mm. Housing dimensions from the supplied catalog: H 81.0 mm, J 63.5 mm.
Additional information
| Weight | 0.23 kg |
|---|---|
| Bearing Type | SAPFL Stamped Steel 2-Bolt Flange Unit – Eccentric Locking |
| Shaft Diameter | 17 mm |
| Housing L | 59 mm |
| Housing J | 63.5 mm |
| Housing H | 81 mm |
| Housing H1 | 4 mm |
| Housing H0 | |
| N | 7 mm |
| A | 14 mm |
| d1 | 28.6 mm |
| B1 | 28.6 mm |
| B | 22 mm |
| S | 6 mm |
| Bolt Size | M6 / 1/4 in |
| Weight | 0.23 kg |
