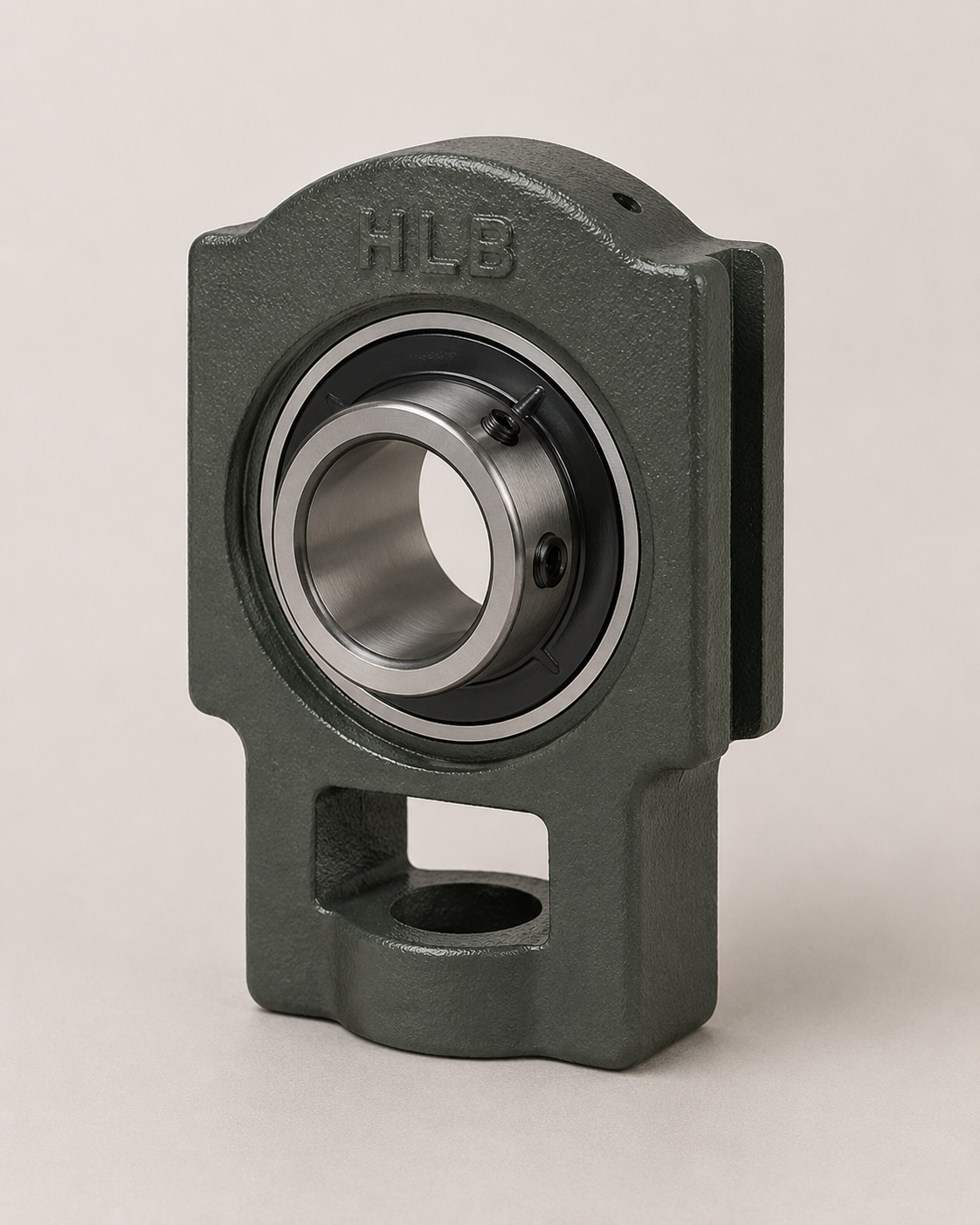

UCT214 HLB Take-Up Bearing
UCT214 HLB Take-Up Bearing
Description
UCT214 HLB Take-Up Bearing. Shaft diameter: 70 mm. Catalogue dimensions: N1=32 mm; L2=21 mm; H2=111 mm; N2=70 mm; N=41 mm; L3=121 mm; A1=26 mm; H1=151 mm; H=167 mm; L=224 mm; A=70 mm; A2=46 mm; L1=137 mm; B=74.6 mm; S=30.2 mm. Basic dynamic load rating: 46.8 kN. Basic static load rating: 45 kN.
Additional information
| Brand | HLB |
|---|---|
| Shaft Diameter | 70 mm |
| Catalogue Dimensions | N1=32 mm; L2=21 mm; H2=111 mm; N2=70 mm; N=41 mm; L3=121 mm; A1=26 mm; H1=151 mm; H=167 mm; L=224 mm; A=70 mm; A2=46 mm; L1=137 mm; B=74.6 mm; S=30.2 mm |
| Dynamic Load Rating | 46.8 kN |
| Static Load Rating | 45 kN |
| Bearing Type | Take-Up Bearing |
