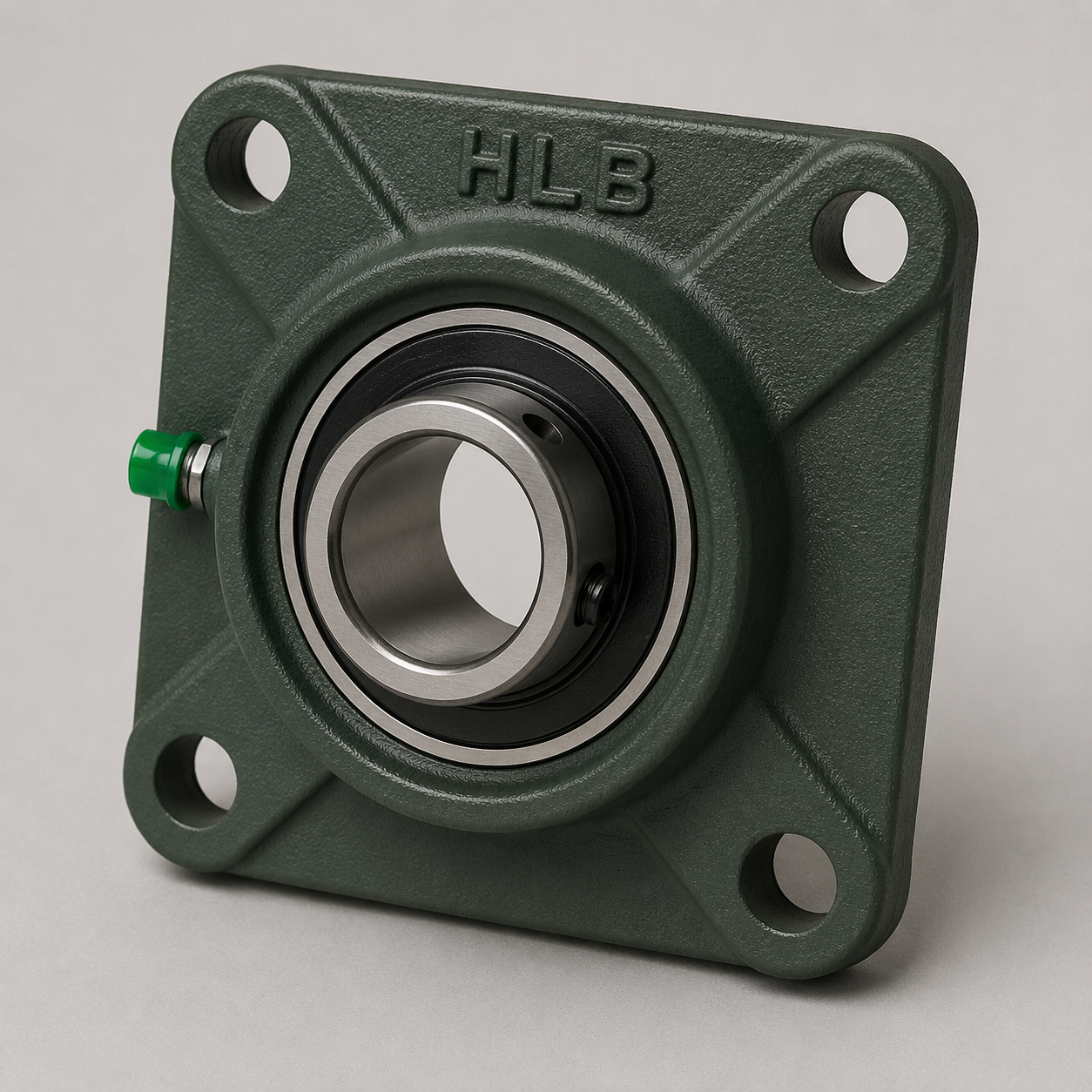

UCF212 HLB Square Flange Bearing
UCF212 HLB Square Flange Bearing
Description
UCF212 HLB Square Flange Bearing. Shaft diameter: 60 mm. Catalogue dimensions: L=175 mm; J=143 mm; A2=29 mm; A1=18 mm; A=48 mm; E=68.7 mm; N=19 mm; S=22.2 mm. Basic dynamic load rating: 36.8 kN. Basic static load rating: 32.8 kN.
Additional information
| Brand | HLB |
|---|---|
| Shaft Diameter | 60 mm |
| Catalogue Dimensions | L=175 mm; J=143 mm; A2=29 mm; A1=18 mm; A=48 mm; E=68.7 mm; N=19 mm; S=22.2 mm |
| Dynamic Load Rating | 36.8 kN |
| Static Load Rating | 32.8 kN |
| Bearing Type | Square Flange Bearing |
