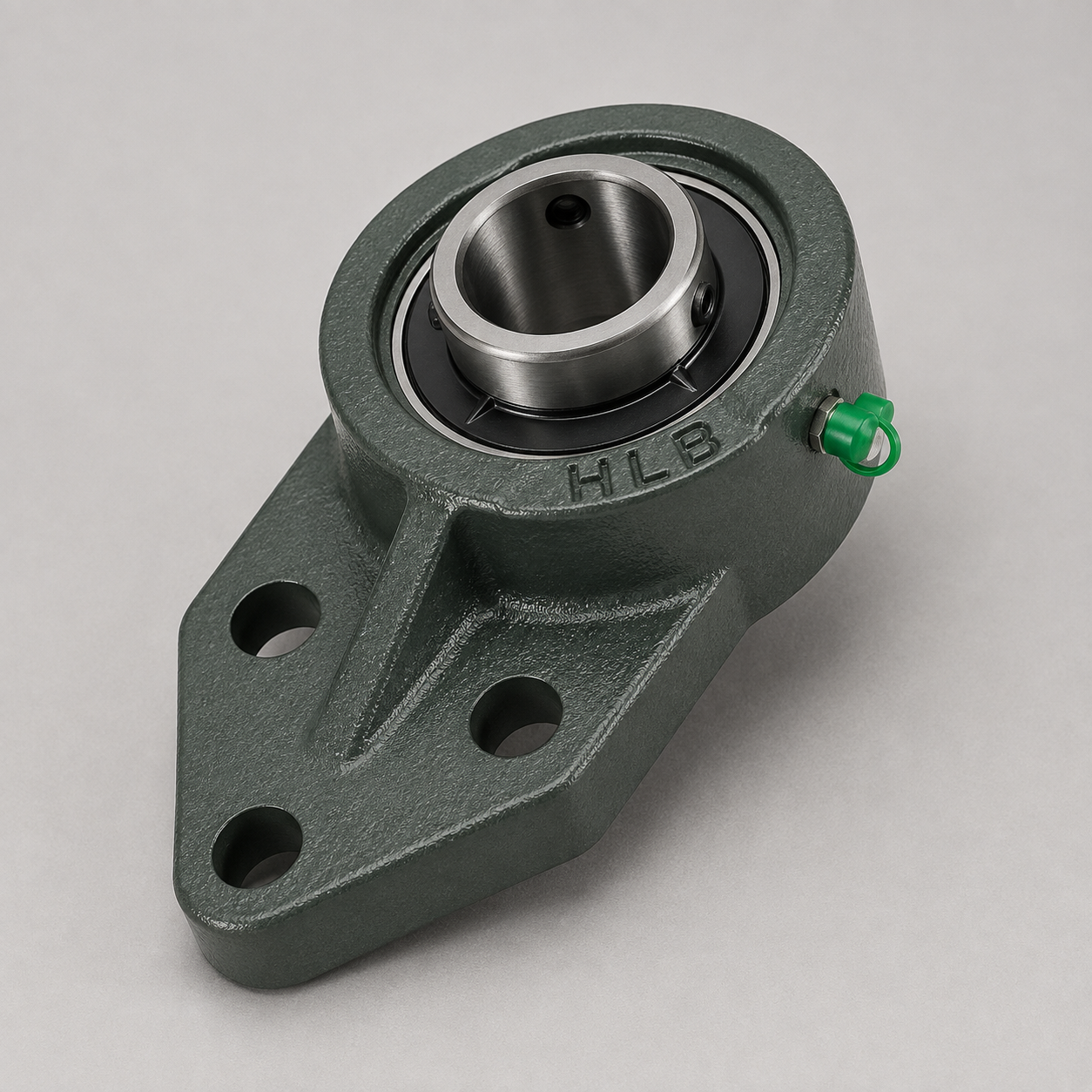

UCFB202-10 HLB Flange Bracket Bearing
UCFB202-10 HLB Flange Bracket Bearing
Description
UCFB202-10 HLB Flange Bracket Bearing. Shaft diameter: 15 mm (5/8). Catalogue dimensions: H1=110 mm; L2=62 mm; H2=52 mm; P=52 mm; H=42 mm; j=27 mm; J=32 mm; A=25.5 mm; A1=13 mm; A2=15 mm; N=10 mm; E=33.3 mm; S=12.7 mm. Basic dynamic load rating: 7.35 kN. Basic static load rating: 4.78 kN.
Additional information
| Brand | HLB |
|---|---|
| Shaft Diameter | 15 mm, 5/8 |
| Catalogue Dimensions | H1=110 mm; L2=62 mm; H2=52 mm; P=52 mm; H=42 mm; j=27 mm; J=32 mm; A=25.5 mm; A1=13 mm; A2=15 mm; N=10 mm; E=33.3 mm; S=12.7 mm |
| Dynamic Load Rating | 7.35 kN |
| Static Load Rating | 4.78 kN |
| Bearing Type | Flange Bracket Bearing |
