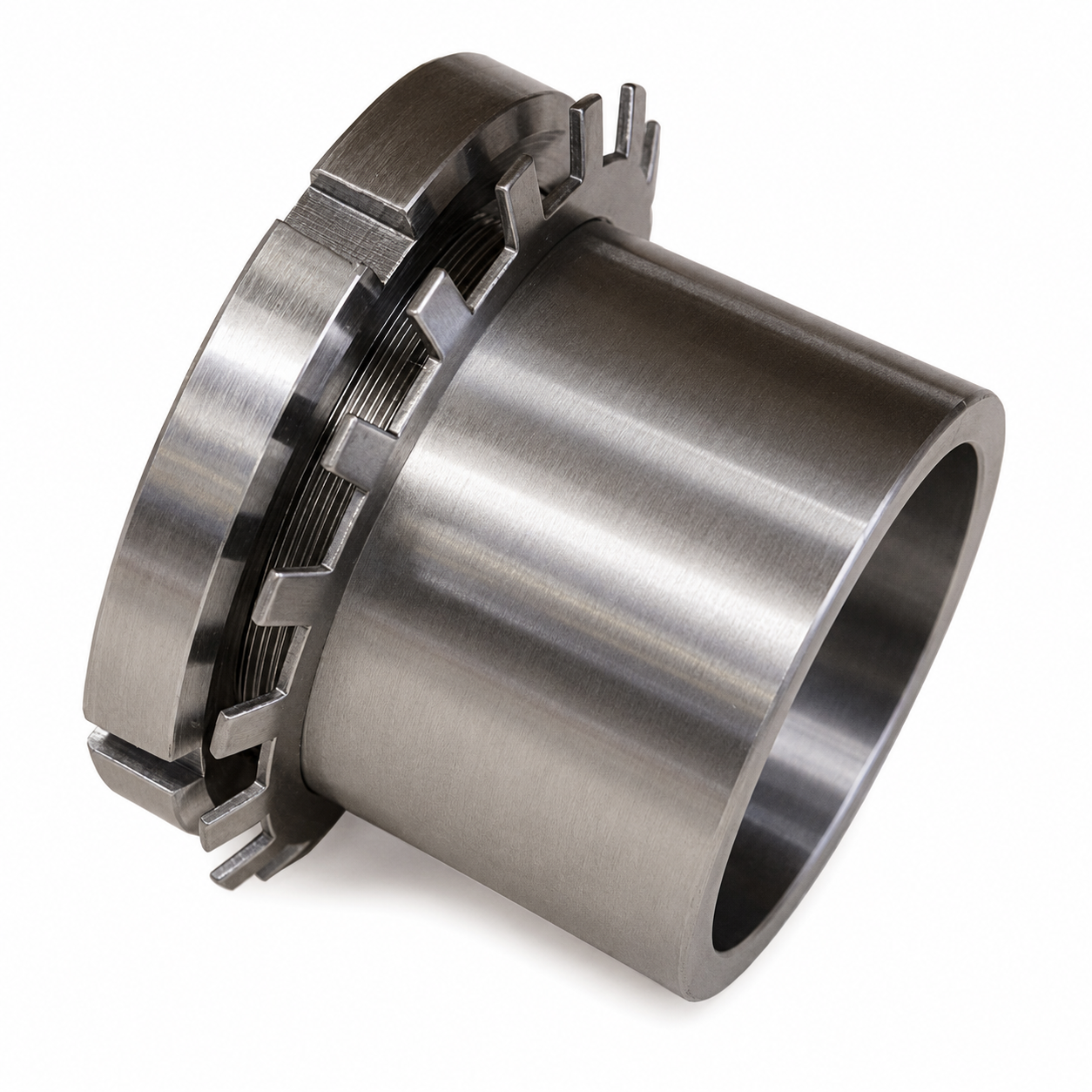

H209 ADAPTER SLEEVE
H 200 Series adapter sleeve. Supplied as 1 sleeve.
Description
Main dimensions to DIN 5415; taper 1:12; for shaft tolerances h7, h8 and h9. Includes lock nut and retaining ring.
Additional information
| Series | H 200 Series |
|---|---|
| Pack Size | 1 sleeve |
| Bore d1H | 40 mm |
| Outside Diameter Dm | 65 mm |
| Length I | 33 mm |
| Width c | 12 mm |
| Shaft Diameter d | 45 mm |
| Thread d2G | M45x1, 5 |
| Nut | KM9 |
| Retaining Ring | MB9 |
| Mass |
