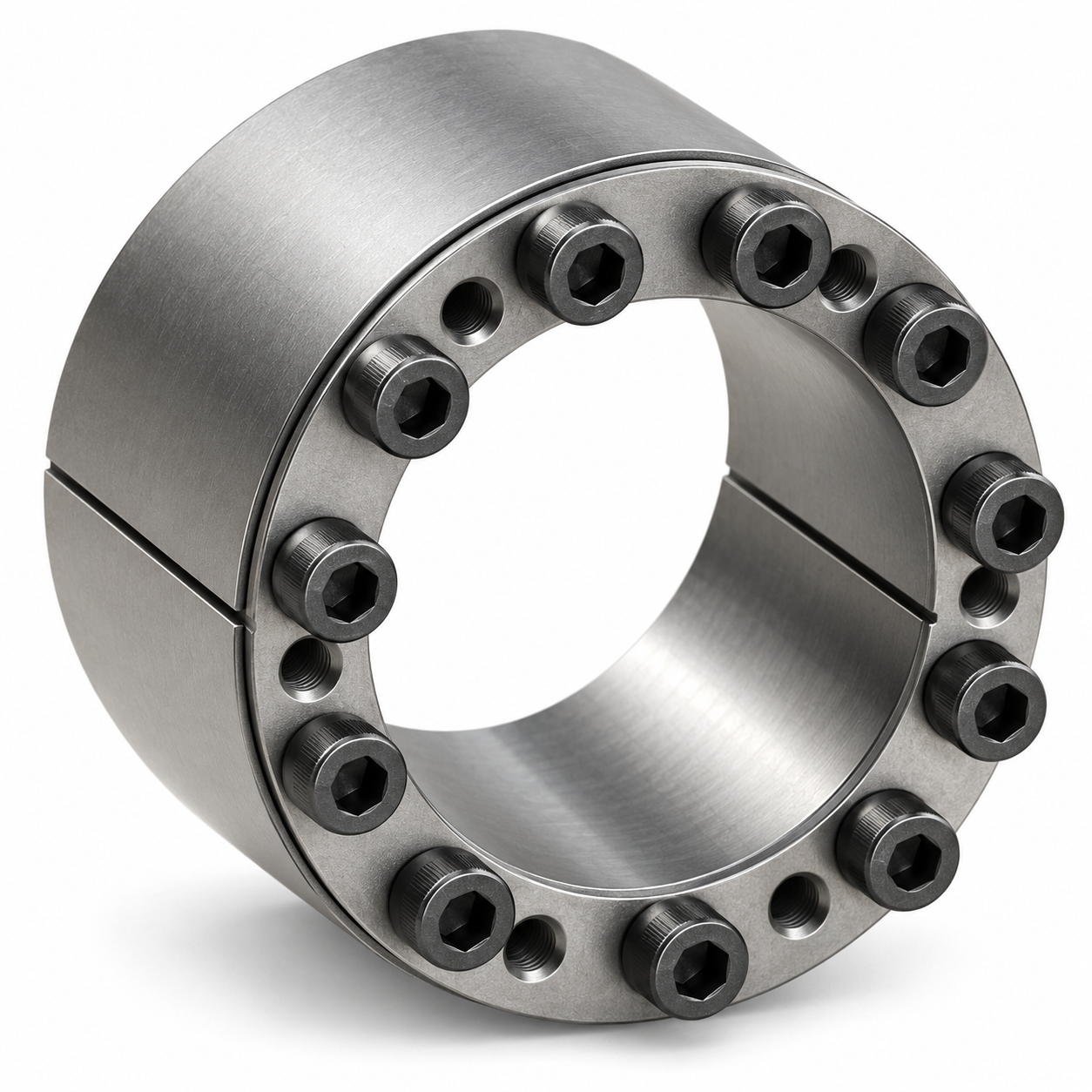

FLK400 100X145 Locking Element
FenLock FLK400 keyless locking element, 100X145 mm.
Description
FenLock FLK400 keyless shaft/hub locking element for industrial power transmission applications.
Technical specifications are supplied as product attributes for display in the WooCommerce Additional Information section.
Additional information
| Shaft Diameter d (mm) | 100 |
|---|---|
| Outer Diameter D (mm) | 145 |
| H (mm) | 112 |
| H1 (mm) | 100 |
| H2 (mm) | 90 |
| Torque Mt (Nm) | 25029 |
| Axial Force / Thrust (kN) | 463 |
| Shaft Contact Pressure P (N/mm²) | 195 |
| Hub Contact Pressure Pn/P1 (N/mm²) | 105 |
| Locking Screws | 11 x M12X80 |
| Screw Tightening Torque (Nm) | 145 |
| Product Type | Self-centering |
| Catalogue Note | Suggested fixing dimension: Shaft h8; Hub H8. |
